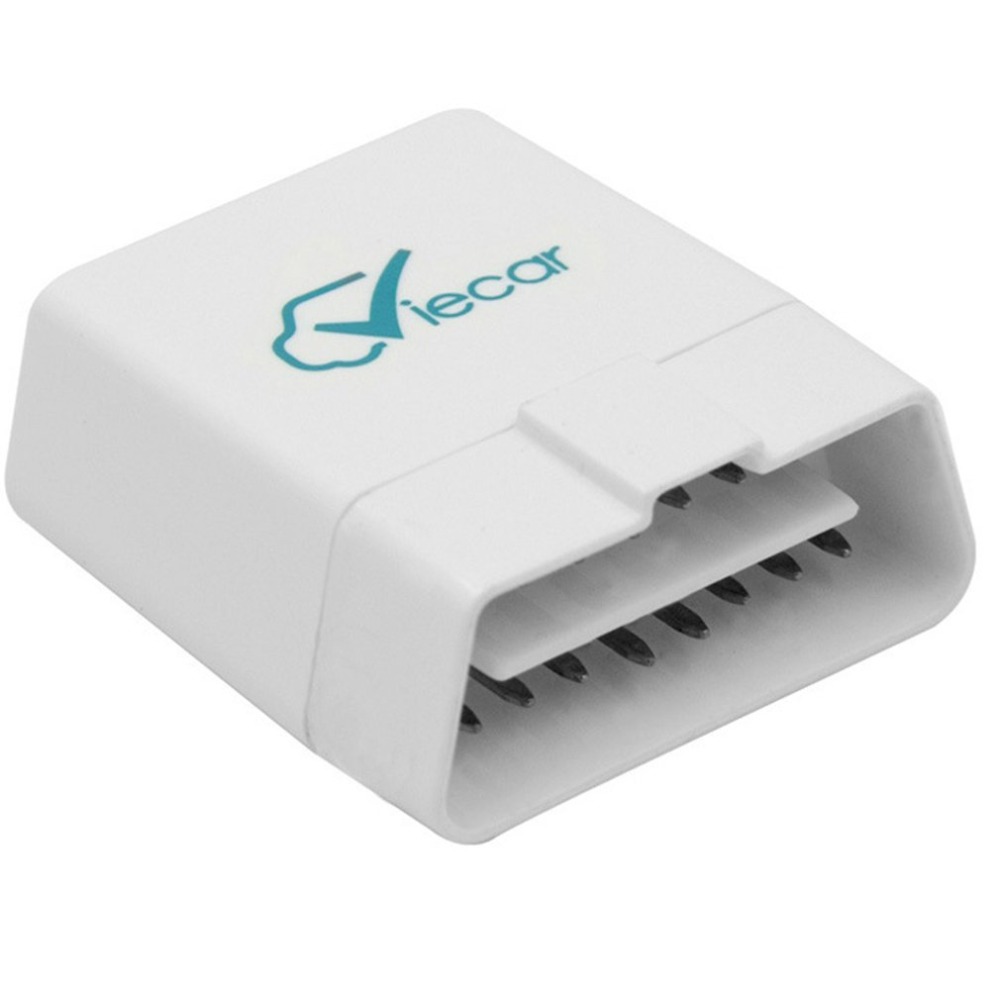

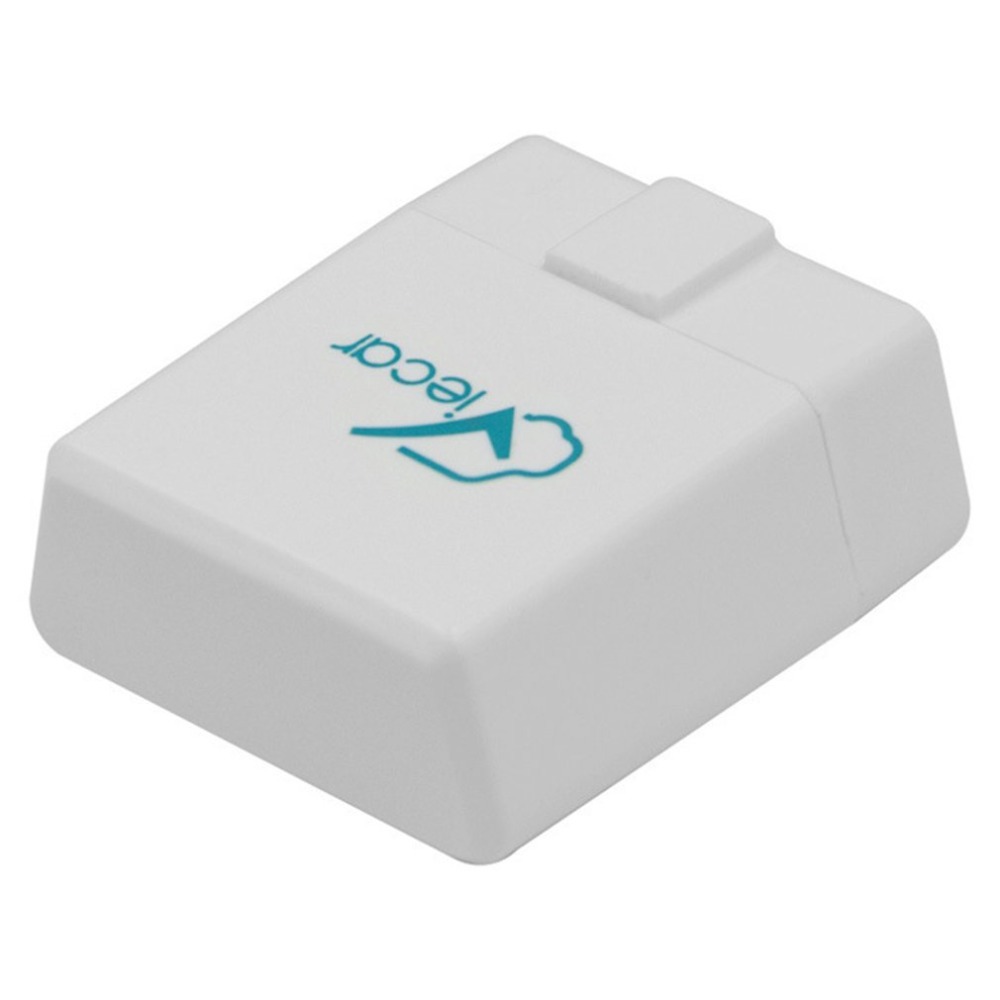

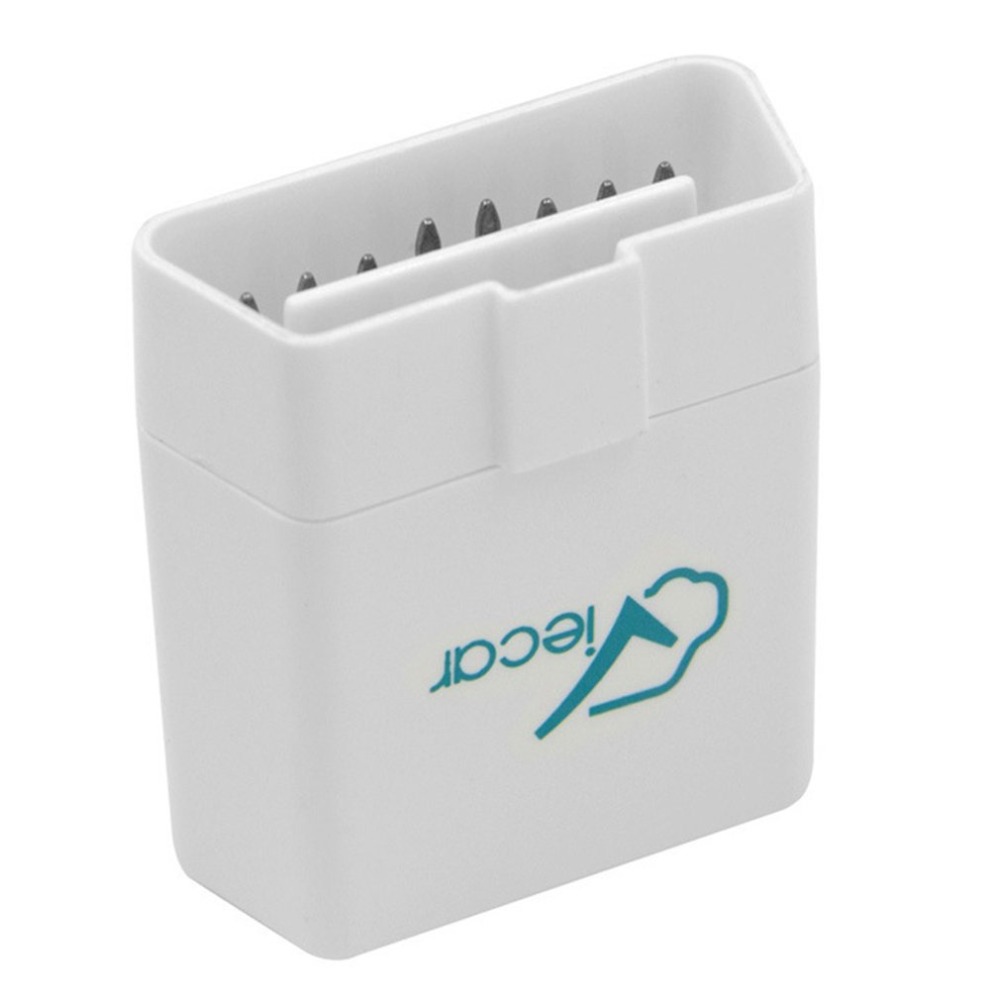

Viecar Elm327 V1.5 Bluetooth 4.0 OBD2 Avtomobil Diaqnostika Cihazı

Expargo bu məhsulun satıcısı deyil. Alışı sizin adınızdan mənbə mağazada həyata keçirir. Beynəlxalq kargo bağlamanın çəkisinə uyğun ayrıca hesablanır. Göstərilən müddət təxminidir.

Variant və miqdar tələbi mənbə mağazadan asılıdır. Tam texniki məlumat mənbədən təsdiqlənir.

产品参数 1. 通讯方式: 蓝牙双模 (2.0/4.0) 2. 软件平台: 支持 Android / IOS 3. 工作电压: 9V~16V 4. 工作电流: 45mA 5. 工作温度: -40℃~85℃ 6. 工作湿度: 小于 60% 7. 尺寸: 45mm*40mm*18mm 8. 支持车型: OBDII 协议车辆 支持的 OBD-II 协议： SAE J1850 PWM (41.6 Kbaud) SAE J1850 VPW (10.4 Kbaud) ISO 9141-2 (5 baud init, 10.4 Kbaud) ISO14230-4 KWP (5 baud init, 10.4 Kbaud) ISO14230-4 KWP (fast init, 10.4 Kbaud) ISO15765-4 CAN (11bit ID, 500 Kbaud) ISO15765-4 CAN (29bit ID, 500 Kbaud) ISO15765-4 CAN (11bit ID, 250 Kbaud) ISO15765-4 CAN (29bit ID, 250 Kbaud) Viecar Bluetooth 4.0 is a software + hardware multi-functional, comprehensive in-vehicle high-tech automotive electronics products, using Bluetooth 4.0 dual-mode design, perfectly support IOS and Android devices and high-speed data transmission, along with low power consumption, really save power. Via connecting with in-vehicle ECU computer to achieve interface 360 degree experience of whole car, early find vehicle Sub-health, also ensures vehicle in warranty early find fault so that promptly take appropriate measures, protect the interests of the owners ; by analyzing and assessing for this time and historical and other multi-dimensional fuel consumption, help car owners saving fuel even money; also recording driving behavior, analyzing condition data, recommending for improvement, and promptly correcting bad driving habits, in order to drivers can be more humane to use their own car. Viecar Bluetooth 4.0 is no longer simply a screen information display system, but through stunning head-up display (HUD), let drivers no longer have to bow to watch the meter, while enjoying the pilot driving experience, and eliminating the potential safety problems from bowing to watch meter. Cool real-time dashboard design, extended original car without display data; very largely enhance the visual experience. Product Parameters 1. Communication method: Bluetooth dual-mode (2.0/4.0) 2. Software platform: Support Android / IOS / Windows 3. Operating voltage: 9V~16V 4. Operating current: 45mA 5. Operating temperature: -40℃~85℃ 6. Operating humidity: <60% 7. Dimensions: 45mm*40mm*18mm 8. Supported vehicle: OBDII protocol vehicle Supports OBDII protocols: SAE J1850 PWM (41.6 Kbaud) SAE J1850 VPW (10.4 Kbaud) ISO 9141-2 (5 baud init, 10.4 Kbaud) ISO14230-4 KWP (5 baud init, 10.4 Kbaud) ISO14230-4 KWP (fast init, 10.4 Kbaud) ISO15765-4 CAN (11bit ID, 500 Kbaud) ISO15765-4 CAN (29bit ID, 500 Kbaud) ISO15765-4 CAN (11bit ID, 250 Kbaud) ISO15765-4 CAN (29bit ID, 250 Kbaud) Software description: Viecar Bluetooth 4.0 using self-developed Viecar software, more user-friendly interface designed to provide continuous software upgrades, and much powerful. Buying product, can obtain the right to use the software, no additional cost to purchase software. And one-year hardware warranty. Software features: Software can perform the following operations: Read error diagn ostic codes - General and manufacturers special use, and display their meaning (Database has over 3000 generic code definitions) Clear the error code and shut off the MIL ( "Check Engine" light) Display current sensor data, comprising: Engine revolutions p er minute (RPM) The calculated load value Coolant temperature Fuel System Status Speed Short-term fuel situation Long-term fuel situation Intake manifold pressure Injection advance time Intake air temperature Air flow rate Absolute throttle position Oxygen-sensing voltage associated with the short-term fuel state Fuel System Status The fuel pressure Fuel consumption monitoring and many other data ...... Future software features: Data chart display and logging Freeze frame data Continuous and discontinu ous oxygen probe results Compatible software: Window: ScanMaster-ELM, ScanTool.net, PCMSCAN Android: Torque_Pro, DashCommand, EOBD IOS: DashCommand, EOBD，Viecar Symbian: OBDScope 1 X Viecar 4.0 Bluetooth 1 X User Manual 亚克力包装：
