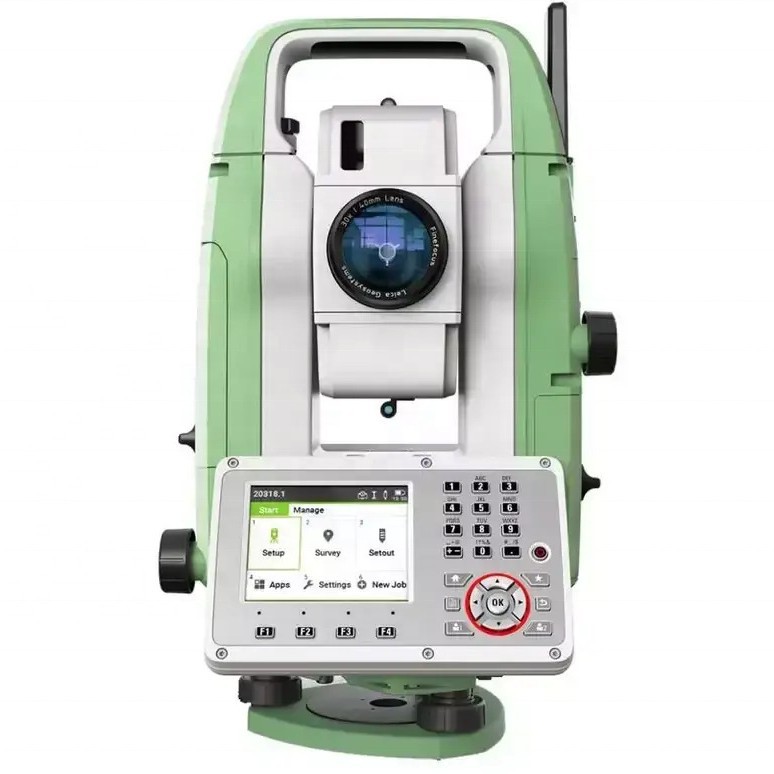

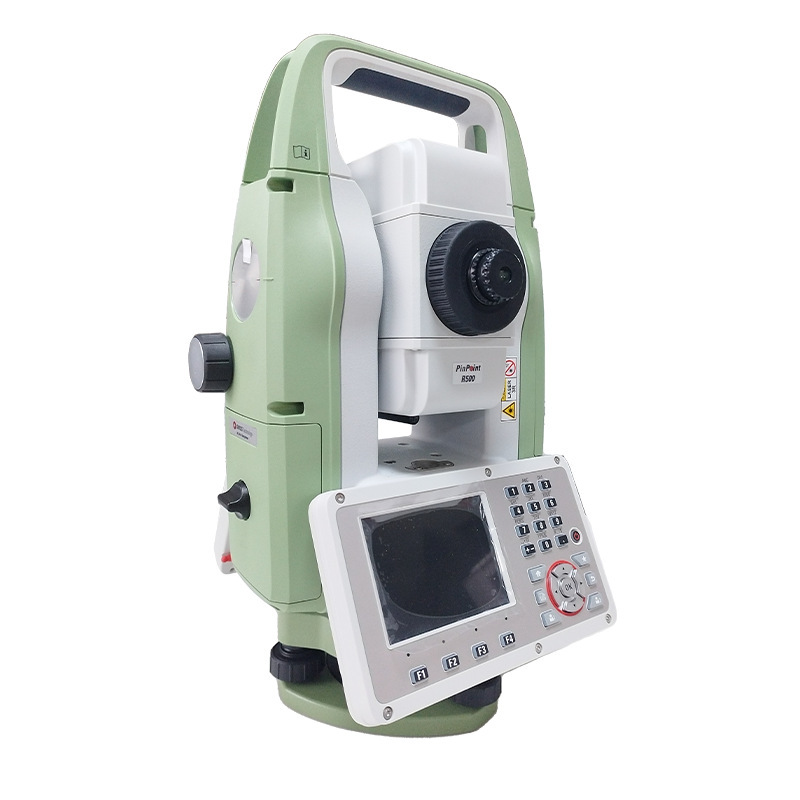

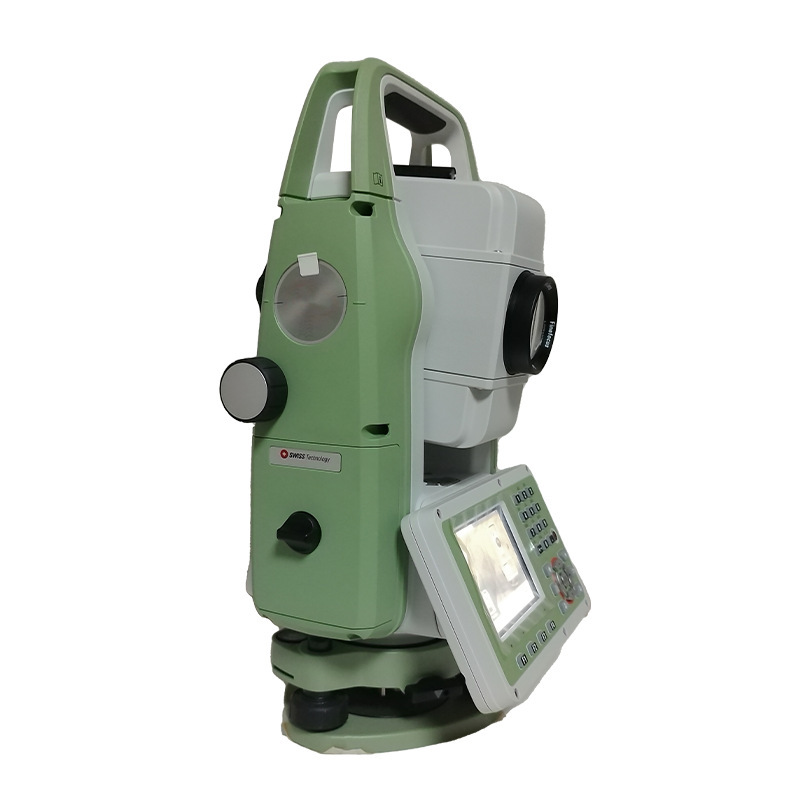

Viva TS07 Elektron Total Station - Rəqəmsal Ekranlı Ölçmə Cihazı

Expargo bu məhsulun satıcısı deyil. Alışı sizin adınızdan mənbə mağazada həyata keçirir. Beynəlxalq kargo bağlamanın çəkisinə uyğun ayrıca hesablanır. Göstərilən müddət təxminidir.

Variant və miqdar tələbi mənbə mağazadan asılıdır. Tam texniki məlumat mənbədən təsdiqlənir.

Product Paramenters Viva TS07 Total Station ANGULAR MEASUREMENT Accuracy 1 Hz and V Absolute, continuous, diametrical 1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon), 5’’ (1.5 mgon) 1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon), 5’’ (1.5 mgon) DISTANCE MEASUREMENT Range 2 Prism (GPR1, GPH1P) 3 Non-Prism / Any surface 4 1.5m to 3500m R500: 1.5m to >500m, R1000: 1.5m to >1000m 1.5m to 3500m R500: 1.5m to >500m, R1000: 1.5m to >1000m Accuracy / Measurement time Single (prism) 2,5 Single (any surface) 2,4,5,6 1mm 1.5ppm / typically 2.4s 2mm 2ppm / typically 3s 1mm 1.5ppm / typically 2.4s 2mm 2ppm / typically 3s Laser dot size At 50m 8mm x 20mm 8mm x 20mm Measurement technology System analyser Coaxial, visible red laser Coaxial, visible red laser IMAGING Overview camera Sensor Field of view Frame rate 5 megapixel CMOS sensor 19.4° Up to 20 frames per second 5 megapixel CMOS sensor 19.4° Up to 20 frames per second AUTOMATIC AIMING - ATRplus Target aiming range2 / Target locking range2 Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122) 1500m / 1000m 1000m / 1000m 1500m / 1000m 1000m / 1000m Accuracy 1,2 / Measurement time ATRplus angle accuracy Hz, V 1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon), 5’’ (1.5 mgon) / typically 3-4s POWERSEARCH Range / Search time 360° prism (GRZ4, GRZ122) GUIDE LIGHT (EGL) Working range / Accuracy 5–150m / typically 5cm @ 100m GENERAL Field software Leica Captivate with apps Display and keyboard 5" (inch), WVGA, colour, touch, face I standard / face II optional 37 keys, illumination Processor TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™ Operating system – Windows EC7 Power management Exchangeable Lithium-Ion battery Operating time 5–8 h Data storage Internal memory Memory card 2 GB SD card 1 GB or 8 GB Interfaces RS232, USB, ®, WLAN Weight Total station including battery 5.3 - 6kg Environmental specifications Working temperature range Dust / Water (IEC 60529) / Humidity –20°C to 50°C IP55 / 95%, non-condensing Details Images Why Choose Us Recommend Products Certificate FAQ 1. Who are we? We are based in Chongqing, China, start from 2018,sell to Domestic Market(00.00%). There are total about 11-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? We are the largest surveying and mapping instrument agent in southwest China. The main brands of the agent are: Topcon, Sokkia, Trimble, FOIF, South, Hi-target, etc. Main products are: total station, rtk GPS, level, theodolite, etc. 4. Why should you buy from us not from other suppliers? Product diversification Service diversification Lower price Quality control facilitation We provide our customers with the world's most cost-effective instrument products,provide one-stop instrument solutions, quality products and services. 5. What services can we provide? Accepted Delivery Terms: FOB； Accepted Payment Currency:USD; Accepted Payment Type: T/T,Western Union; Language Spoken:All
